NC Rotary Table |
|
<<Back |
|
|
|
Pneumatic Clamping System |
|
|
|
|
|
|
TD-125, 170, 200, 255P are equipped with high-tech Cross Roller Bearing. |
|
Pneumatic Clamping adopted the disc of clamping system to enlarge clamping
force and can ensure heavy-duty continuous cutting. |
|
The feature of wear resistant alloy Double-Lead Worm Gear is high mechanica
l efficiency of power adjusted on the backlash. |
|
It can connect with CNC machine as a 4 Axes or match with Single Axis
Controller as a additional Axis. |
|
|
|
|
|
|
TD-170/125/200 |
TD-255 |
|
|
|
|
Model (Unit:mm) |
TD-125(V) |
TD-170(V) |
TD-200(V) |
TD-255P(V) |
Use Method |
Horizontal & Vertical (V-Vertical) |
Clamp Method |
Pneumatic 5kg/cm2 |
Faceplate Dimension |
Ø125 |
Ø170 |
Ø200 |
Ø255 |
Spindle Through Hole Diameter |
Ø22 |
Ø45 |
Ø45 |
Ø80 |
Faceplate Center Hole Diameter |
Ø40H7 |
Ø50H7 |
Ø50H7 |
Ø80H7 |
Center High |
110 |
135 |
160 |
160 |
Faceplate T Solt Width |
12H7 |
Position Key |
14h7 |
18h7 |
Servo Motor |
FANUC |
a2i |
a4i |
a4i |
a8i |
MELDAS |
HA23/33 |
HA40/HC52 |
HA40/HC102 |
HA80/HC152(102) |
Total Speed Reduction Ratio |
1/90 |
1/180 |
Min. Speed Reduction Ratio |
0.001° |
Indexing Accuracy (Cumulative)(Arc. Sec.) |
45 |
30 |
30 |
15 |
Repeatability (Arc.Sec.) |
4 |
Clamp Force (kgf/m) |
8 |
16 |
16 |
45 |
Max. Torque Capacity of Worm Gear (kfg/m) |
15 |
27 |
27 |
48 |
Max. Workpiece of
Capacity (kg) |
Vertical
(with tailstock) |
50
(100) |
75
(150) |
75
(150) |
100
(250) |
Horizontal |
100 |
150 |
150 |
250 |
Net weight (without motor) (kg) |
31 |
40 |
60 |
120 |
Dimension(download)- JIF File |

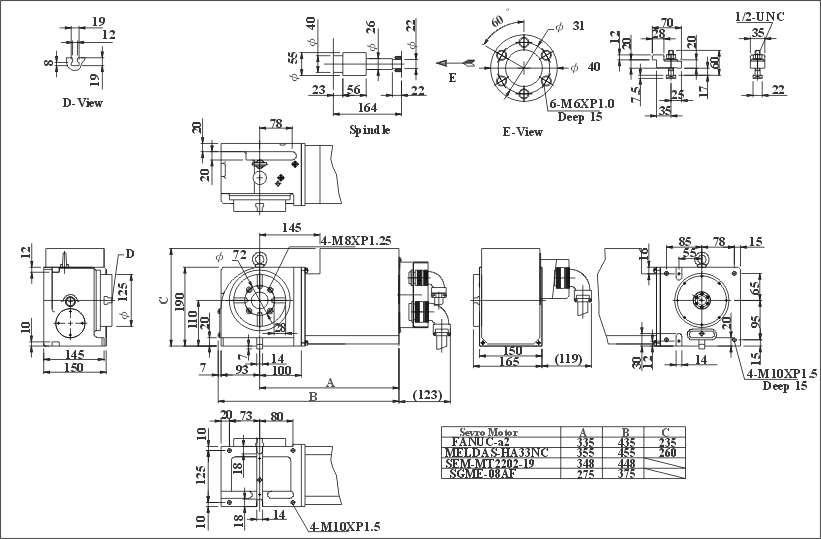

TD-125(V) |

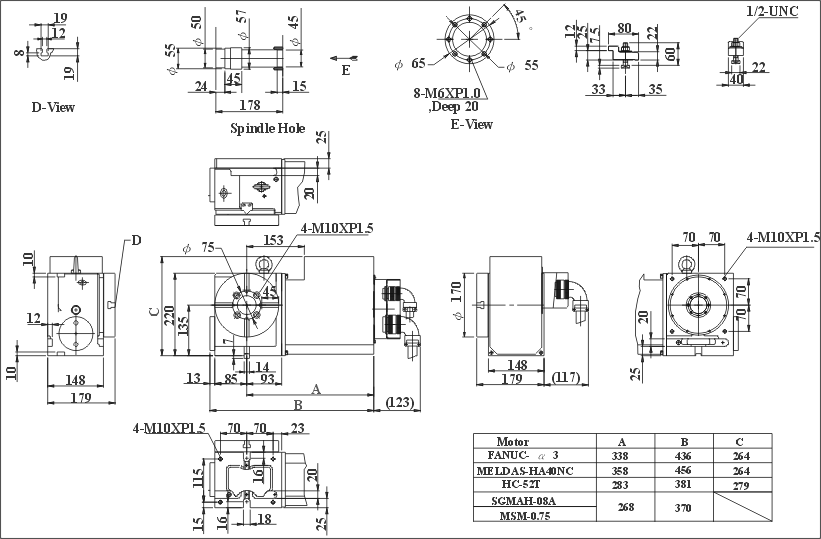

TD-170(V) |
TD-200(V) |

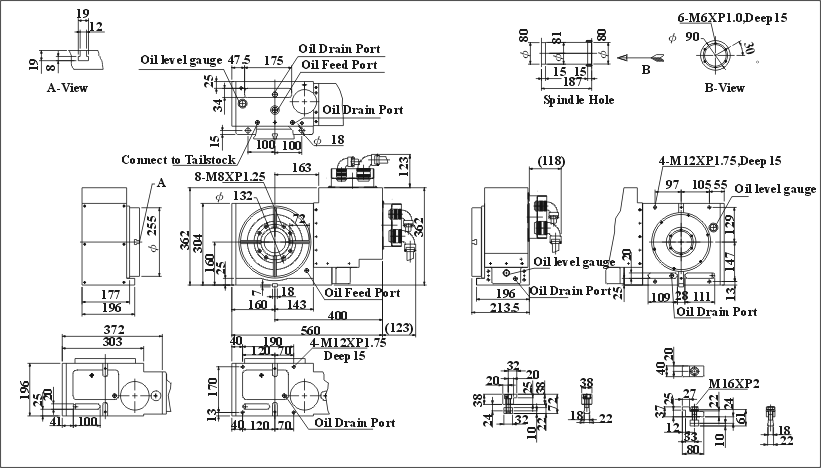

TD-255P(V) |
Dimension(download)-PDF File |
TD-125(V) |
TD-170(V) |
TD-200(V) |
TD-255P(V) |
|
|
|
|
|
|
Hydraulic Clamping System |
|
|
|
|
|
|
Hydraulic Clamping adapted wholly circular hydraulic clamping system.
It can assure the heavy and steady cutting without any deviation from the center. |
|
The feature of wear resistant alloy Double-Lead Worm Gear is high mechanical
efficiency of power transmission, high indexing accuracy and easy adjusted
on the backlash. . |
|
Servo motor driving can quickly accuracy positioning low noises and suitable
any degree machining. |
|
Can be added with air-hydro booster or hydraulic unit. |
|
It can connected with CNC machine as a 4 Axes or match with Single Axis
controller as a additional Axis. |
|
|
|
|
|
|
|
TD-320V |
TD-400 |
TD-500 |
|
|
|
Model (Unit:mm) |
TD-255H(V) |
TD-320(V) |
Use Method |
Horizontal & Vertical (V-Vertical) |
Clamp Method |
Hydraulic 35kg/cm2 |
Faceplate Dimension |
Ø255 |
Ø320 |
Spindle Through Hole Diameter |
Ø80 |
Ø40 |
Faceplate Center Hole Diameter |
Ø80H7 |
Ø40H7 |
Center High |
160 |
210 |
Faceplate T Solt Width |
12H7 |
14H7 |
Position Key |
18h7 |
Servo Motor |
FANUC |
a8i |
a12i |
MELDAS |
HA80/HF103T |
HA100/HF203T |
Total Speed Reduction Ratio |
1/180 |
Min. Speed Reduction Ratio |
0.001° |
Indexing Accuracy (Cumulative)(Arc. Sec.) |
15" |
Repeatability (Arc.Sec.) |
4" |
Clamp Force (kgf/m) |
50 |
85 |
Max. Torque Capacity of Worm Gear (kfg/m) |
48 |
78 |
Max. Workpiece of
Capacity (kg) |
Vertical
(with tailstock) |
100
(250) |
150
(350) |
Horizontal |
250 |
350 |
Net weight (without motor) (kg) |
120 |
170 |
Dimension(download)- JIF File |
TD-255H(V) |

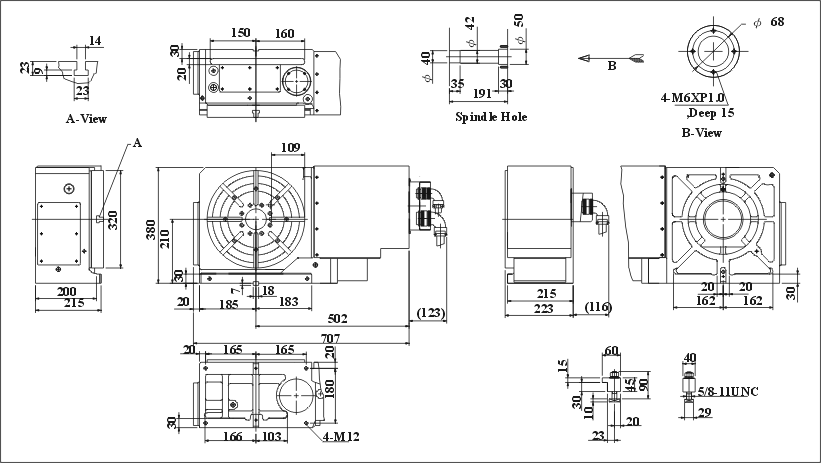

TD-320(V) |
Dimension(download)-PDF File |
TD-255P(V) |
TD-320(V) |
|
|
|
|
|
|
|
|
|
TD-400 |
TD-500 |
|
|
|
|
Model (Unit:mm) |
TD-400 |
TD-500 |
Use Method |
Horizontal & Vertical |
Clamp Method |
Hydraulic 35kg/cm2 |
Faceplate Dimension |
Ø400 |
Ø500 |
Spindle Through Hole Diameter |
Ø40 |
Ø50 |
Faceplate Center Hole Diameter |
Ø40H7 |
Ø50H7 |
Center High |
255 |
310 |
Faceplate T Solt Width |
14H7 |
18H7 |
Position Key |
18h7 |
Servo Motor |
FANUC |
a12i |
MELDAS |
HA100/HF203T |
Total Speed Reduction Ratio |
1/180 |
Min. Speed Reduction Ratio |
0.001° |
Indexing Accuracy (Cumulative)(Arc. Sec.) |
15" |
Repeatability (Arc.Sec.) |
4" |
Clamp Force (kgf/m) |
180 |
250 |
Max. Torque Capacity of Worm Gear (kfg/m) |
180 |
250 |
Max. Workpiece of
Capacity (kg) |
Vertical
(with tailstock) |
200
(500) |
250
(600) |
Horizontal |
500 |
600 |
Net weight (without motor) (kg) |
300 |
470 |
Dimension(download)-JIF File |

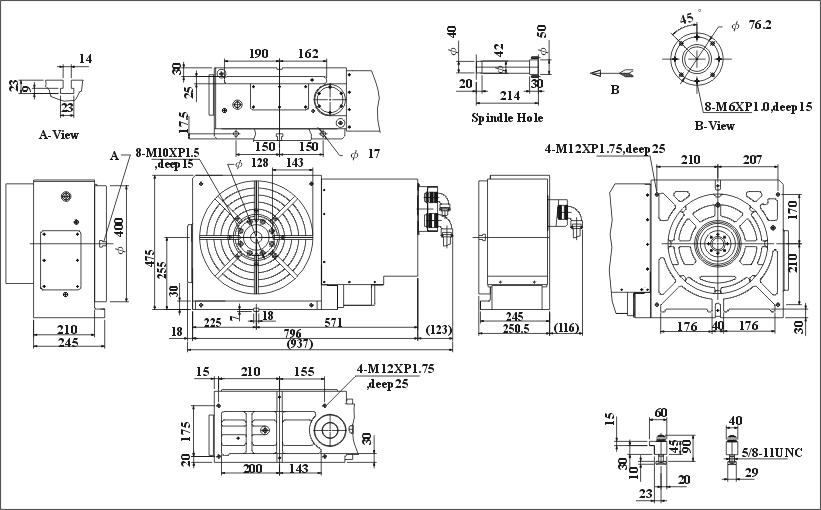

TD-400 |

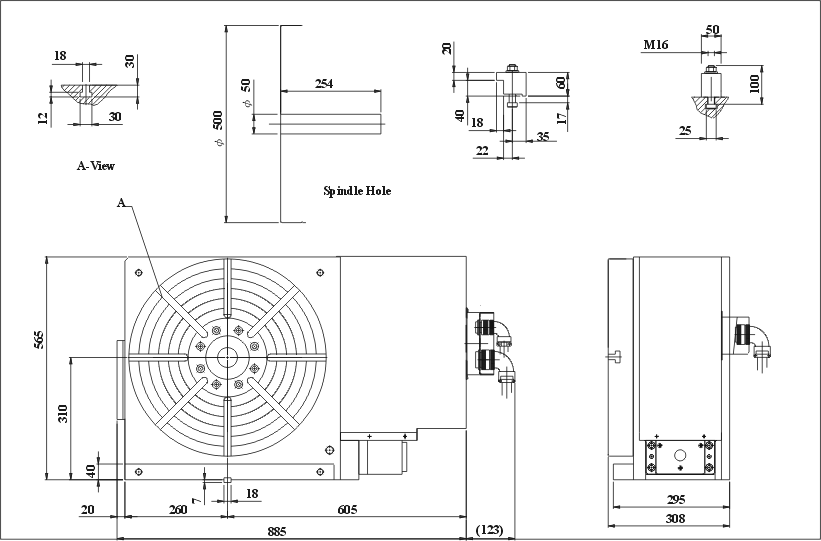

TD-500 |
Dimension(download)-PDF File |
TD-400 |
TD-500 |
|
