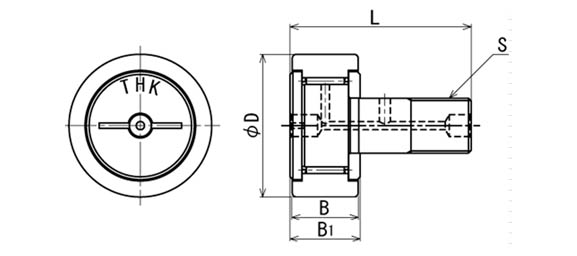

| Model No. |
Main dimensions |
Basic load rating |
Outer diameter
D |
Threaded
S |
Outer ring width
B |
B1 |
Overall
length
L |
With cage |
Full-roller type |
| Dynamic ratingC |
Static ratingC0 |
Dynamic ratingC |
Static ratingC0 |
| mm |
mm |
mm |
mm |
mm |
kN |
kN |
kN |
kN |
| CF 5 |
13 |
M5×0.8 |
9 |
10 |
23 |
3.14 |
2.77 |
— |
— |
| CF 6 |
16 |
M6×1 |
11 |
12 |
28 |
3.59 |
3.58 |
6.94 |
8.5 |
| CF 8 |
19 |
M8×1.25 |
11 |
12 |
32 |
4.17 |
4.65 |
8.13 |
11.2 |
| CF 10 |
22 |
M10×1.25 |
12 |
13 |
36 |
5.33 |
6.78 |
9.42 |
14.3 |
| CF 10-1 |
26 |
M10×1.25 |
12 |
13 |
36 |
5.33 |
6.78 |
9.42 |
14.3 |
| CF 12 |
30 |
M12×1.5 |
14 |
15 |
40 |
7.87 |
9.79 |
13.4 |
19.8 |
| CF 12-1 |
32 |
M12×1.5 |
14 |
15 |
40 |
7.87 |
9.79 |
13.4 |
19.8 |
| CF 16 |
35 |
M16×1.5 |
18 |
19.5 |
52 |
12 |
18.3 |
20.6 |
37.6 |
| CF 18 |
40 |
M18×1.5 |
20 |
21.5 |
58 |
14.7 |
25.2 |
25.2 |
51.3 |
| CF 20 |
52 |
M20×1.5 |
24 |
25.5 |
66 |
20.7 |
34.8 |
33.2 |
64.8 |
| CF 20-1 |
47 |
M20×1.5 |
24 |
25.5 |
66 |
20.7 |
34.8 |
33.2 |
64.8 |
| CF 24 |
62 |
M24×1.5 |
29 |
30.5 |
80 |
30.6 |
53.2 |
46.7 |
92.9 |
| CF 24-1 |
72 |
M24×1.5 |
29 |
30.5 |
80 |
30.6 |
53.2 |
46.7 |
92.9 |
| CF 30 |
80 |
M30×1.5 |
35 |
37 |
100 |
45.4 |
87.6 |
67.6 |
145 |
| CF 30-1 |
85 |
M30×1.5 |
35 |
37 |
100 |
45.4 |
87.6 |
67.6 |
145 |
| CF 30-2 |
90 |
M30×1.5 |
35 |
37 |
100 |
45.4 |
87.6 |
67.6 |
145 |
|
