Dyanmic Systems supply precision LM shaft for Dyanmic Systems Linear Bushing. Because the balls are running directly on the shaft surface, the hardness, surface finishing, and tolerance of shaft must be considered for choosing the profer shaft..
Dyanmic Systems can supply high quality LM shaft with short delivery by stocking the standard

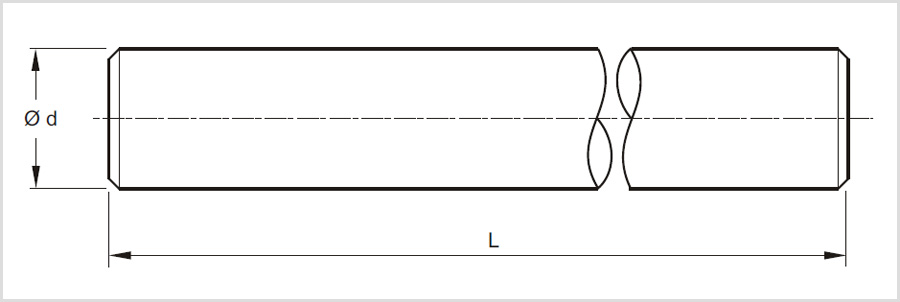

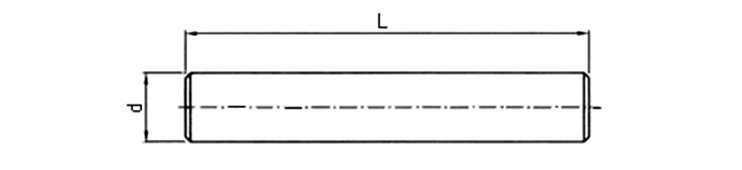

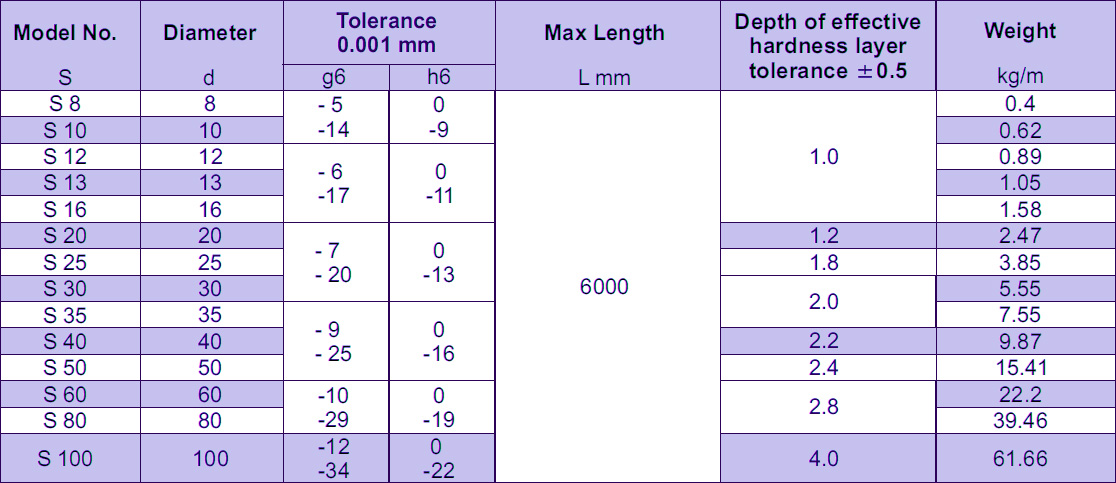

Shaft Dimensions
Material
:
High carbon chromium bearing steel
Hardness
:
HRC 58-64
Case Hardened depth
:
0.8-2.5 mm
Surface finishing
:
0.8S~ 1.6S
Straightness
:
50 microns/ 300mm
Dyanmic Systems LM shaft can be supplied solid . Solid shaft are available in all dimensions required for Dyanmic Systems Linear Bushing

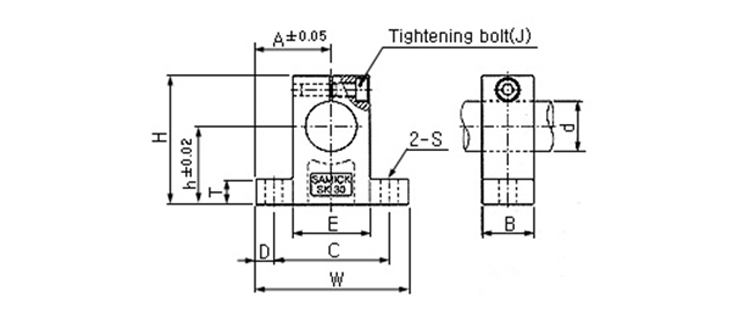

Dyanmic Systems also supply specially machined shaft . The drilled and tapped holes on LM shaft for mounting on the Support Rail are available.
