| Hydraulic Indexing Table |
|
<<Back |
| |
|
|
| Horizontal |
|
|
| |
|
|
 |
Adopted high precision 3pcs Hirth Coupling. It can ensure high positioning
accuracy and unnecessary lift faceplate. |
|
Rack driving can make high mechanical efficiency of power transmission. |
|
Hydraulic driving can cut down the cost. |
|
Hydraulic clamping system can assure the heavy end steady cutting
without any deviation from the centre and can ensure accurate postitioning. |
|
It can be attached with PLC controller or HIC-2006 Hydraulic Index Table
Controller as an additional Axis. |
|
Built in Clamp/Unclamp confirmation unit.It can be matched with Rotary Special Machine. |
|
It can be matched with boring and milling machine. |
|
| |
|
|
| |
 |
|
| |
CH3-340/470
(Horizontal) |
|
| |
|
|
Model (Unit:mm) |
CH3-340 |

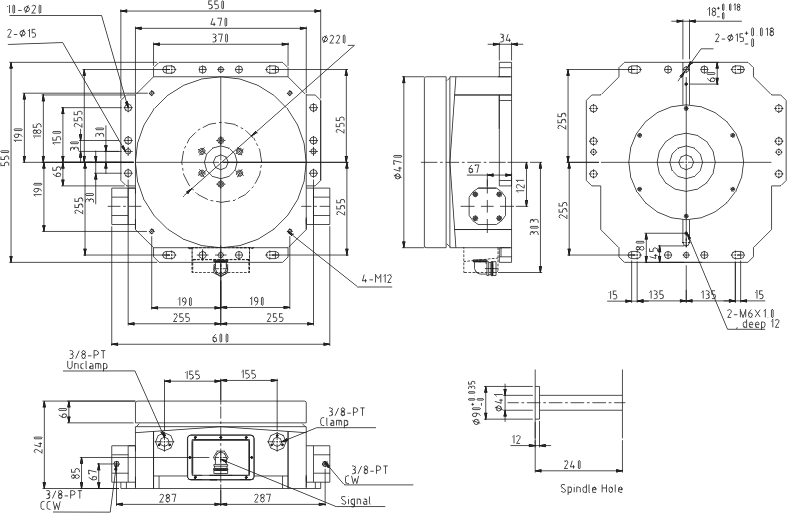

CH3-470 |

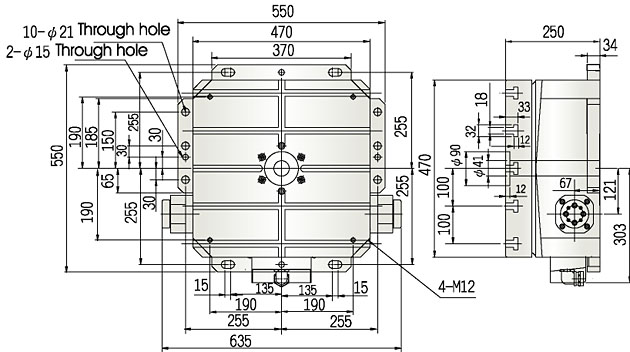

CH3-470S |

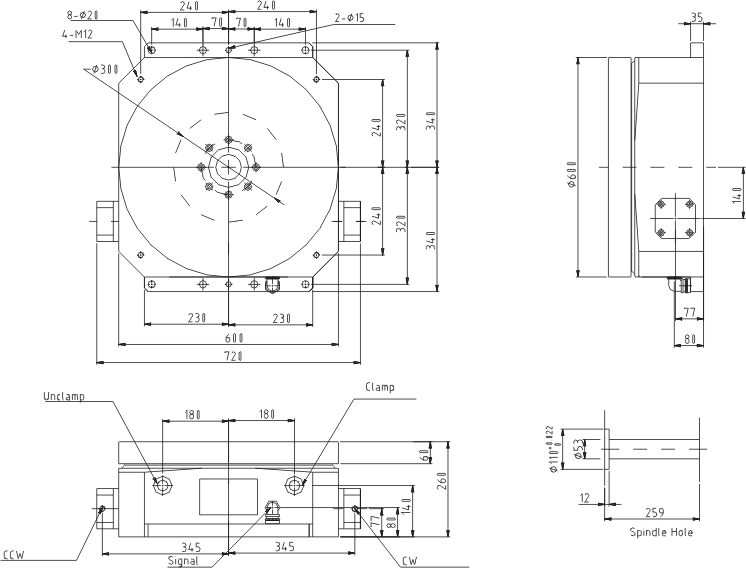

CH3-600 |

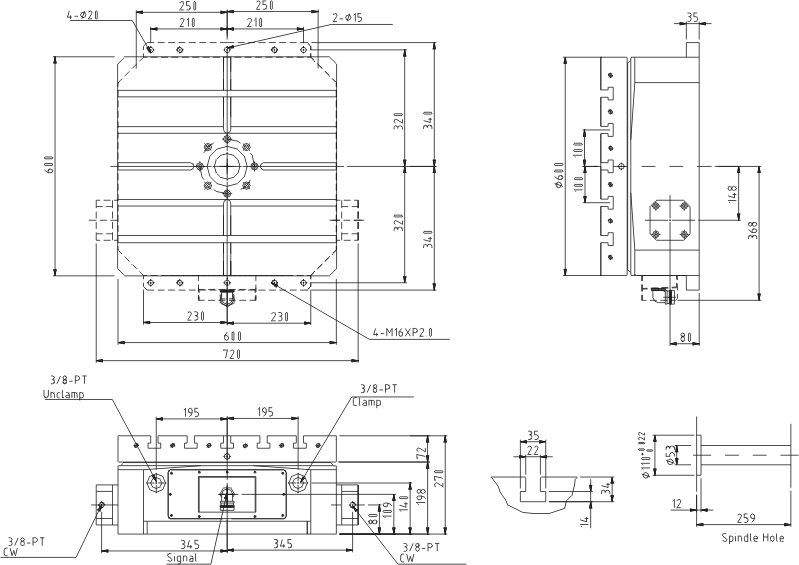

CH3-600S |

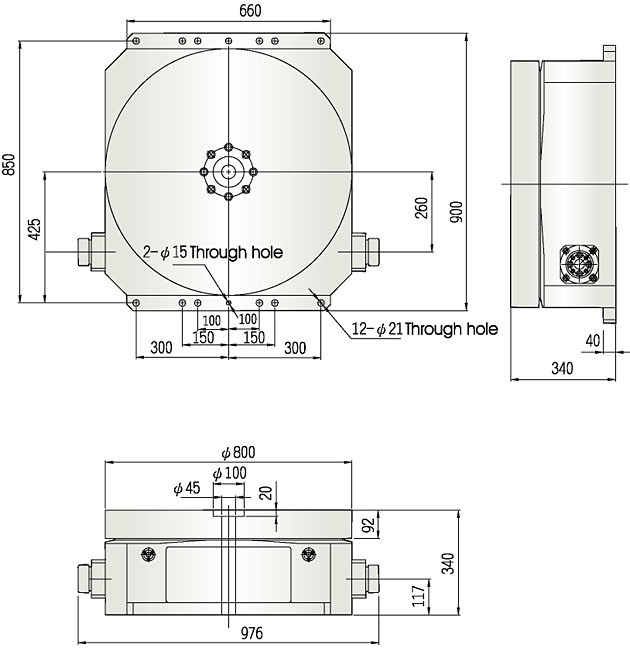

CH3-800 |
Clamp Method |
Hydraulic 35kg/cm2 |
Faceplate Diameter |
Ø340 |
Ø470 |
470 |
Ø600 |
600 |
800 |
Spindle Through Hole Diameter |
Ø30 |
Ø40 |
Ø50 |
Ø45 |
Faceplate Center Hole Diameter |
Ø65 |
Ø90 |
Ø110 |
Ø100 |
Faceplate T Solt Width |
None |
None |
18H7 |
None |
20H7 |
|
Division |
Standard division: Every model have 4,6,8,12,24 standard, you can option any one of it.
Special division: 2,3,5,9,10 ...etc divisions. |
Indexing Accuracy(Arc. Sec.) |
±5 |
Repeatability (Arc. Sec.) |
±1 |
Max. Workpiece of
Capacity (kg) |
500 |
700 |
1250 |
Net weight (kg) |
130 |
275 |
330 |
450 |
560 |
1000KGS |
| Dimension(download)-JIF File |
CH3-340 |
CH3-470 |
CH3-470S |
CH3-600 |
CH3-600S |
CH3-800 |
| Dimension(download)-PDF File |
CH3-340 |
CH3-470 |
CH3-470S |
CH3-600 |
CH3-600S |
CH3-800 |
|
| |
|
|
| Veritcal |
|
|
| |
|
|
|
Adopted high precision 3pcs Hirth Coupling. It can ensure high
positioning accuracy and unnecessary lift faceplate. |
|
Rack driving can make high mechanical efficiency of power transmission. |
|
Hydraulic driving can cut down the cost. |
|
Heavy hydraulic clamping system can assure the heavy end steady cutting
without any deviation from the centre and can ensure accurate postitioning. |
|
It can be attached with PLC controller or HIC-2006 Hydraulic Index Table
Controller as an additional Axis. |
|
| |
|
|
 |
 |

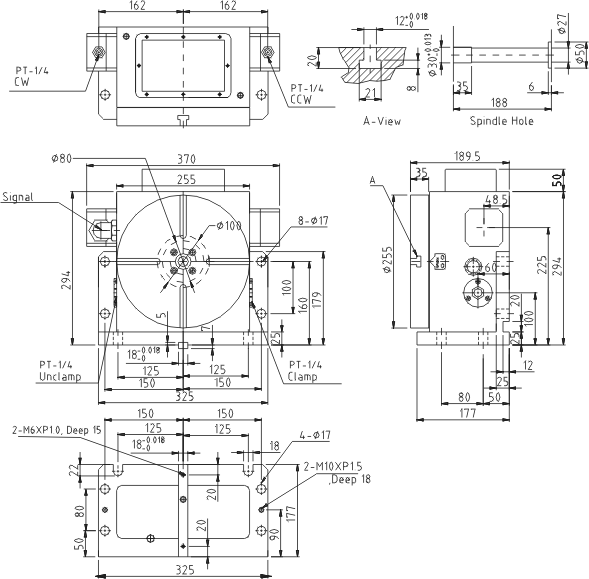

| CV3-255 (Horizontal/Veritcal) |

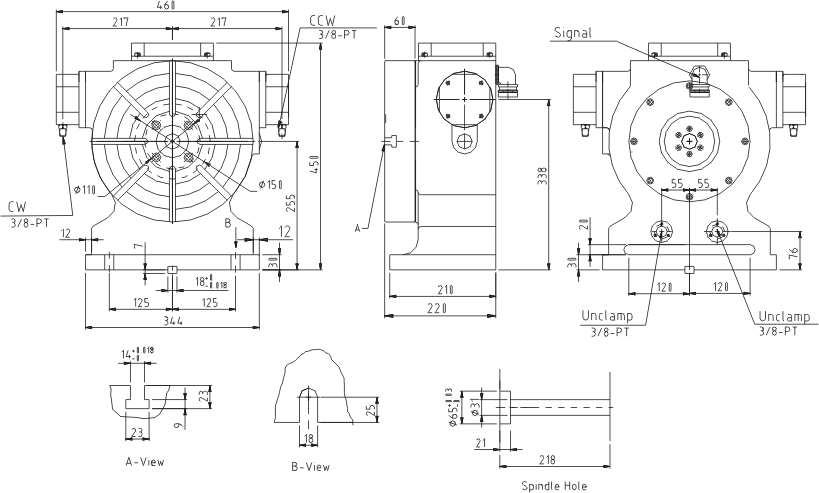

CV3-320(Vertical) |
|
| |
|
|
| |
Model (Unit:mm) |
CV3-255 |
CV3-320 |
Clamp Method |
Hydraulic 35kg/cm 2 |
Faceplate Diameter |
Ø255 |
Ø320 |
Spindle Through Hole Diameter |
Ø27 |
Ø31 |
Faceplate Center Hole Diameter |
Ø30 |
Ø65 |
Center High |
160 |
255 |
Faceplate T Solt Width |
12H7 |
14H7 |
Position Key |
18h7 |
Division |
Standard division: Every model have 4,6,8,12,24 standard, you can option any one of it.
Special division: 2,3,5,9,10 ...etc divisions. |
Indexing Accuracy(Arc. Sec.) |
±5 |
Repeatability (Arc. Sec.) |
±1 |
Max. Workpiece of
Capacity (kg) |
Vertical
(with tailstock) |
125
(250) |
175
(350) |
Horiznotal |
250 |
- |
Net weight (kg) |
80 |
140 |
| Dimension(download)-JIF File |
CV3-255 |
CV3-320 |
| Dimension(download)-PDF File |
CV3-255 |
CV3-320 |
|
| |
|
|
|
