NC Tilting Rotary Table   <<Back

Pneumatic Clamping system, with built-in patented disk-clamping design (Taiwan PAT.: 217736) to ensure cutting endurance.
The feature of wear resistant alloy Dual-Lead Worm Gear is high mechanical efficiency of power transmission, high indexing accuracy and easy adjusted on the backlash.
Able to be connected with CNC machine to perform synchronous 5th axis multi-angle machining.
Able to be connected with CNC machine to perform tilting angle machine (4+1 axis) through Single Axis Controller.
Minimum Indexing Degree: 0.001°
Tilting range: +/- 110 °

TTD-125 TTD-255H


Model
TTD-125
TTD-255H
Tilt range
+110°~ -110°
+110°~ -110°
Spindle outer dia.
Ø60
-
Table dia.
-
Ø255
Table height at 0X position
233
334.5
Center height at 90X position
160
220
Center bore
Nose dia.
Ø25
Ø30
Thru dia.
Ø22
Ø30
Table T-solt width*
-
12H7
Guide block width
14H7
18H7
Servo motor
Rotary
Tilting
Rotary
Tilting
FANUC
a2i
a4i
a8i
a8i
MELDAS
HA33
HA40
HA80
HA80
Inertia converted into motor shaft
X10-3kg.m2
[X10-3kgf.cm.sec2]
0.31
(3.1)
0.52
(5.3)
Speed reduction ratio
1:90
1:90
1:120
1:180
Max. table rotation speed
(3000 r.p.m.)
33.3
33.3
25
16.7
Clamp system supplied pressure
Pneumatic 0.6MPa
5kgf/cm2
Hydraulic3.5MPa
35kgf/cm2
Clamp torque
N-m
[kgf-m]
78
( 8)
157
( 16)
588
( 60)
686
( 70)
Indexing accuracy (cumulative)
arc sec.
45
60
15
45
Repeatability
arc sec.
4
4
4
4
Net weight
kg
95
330
Allowable wheel torque
(Rotary axis)
N-m [kgf-m]
120(12)
490(50)
Allowable work weight
0° tilt angle
kg
35
120
0°~90° tilt angle
kg
20
70
Allowable work moment
WxL
N-m
[kgf-m]
156(16)
470(48)
Allowable load when
table clamped
F
N
[kgf]
343(35)
1170(120)
FxL
N-m
[kgf-m]
78.4(8)
470(48)
FxL
N-m
[kgf-m]
156(16)
470(48)
Allowable work inertia
J=WD2/8
kg-m2
[kg.cm.sec2]
0.18(1.7)
0.7(6.9)

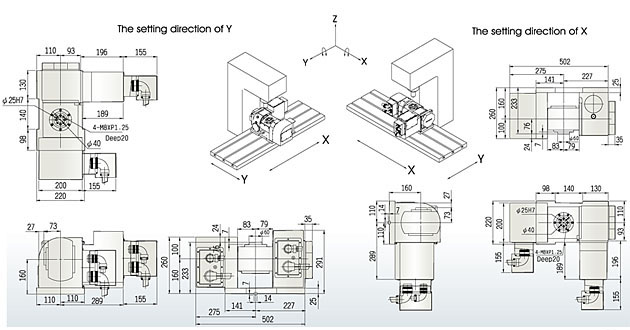

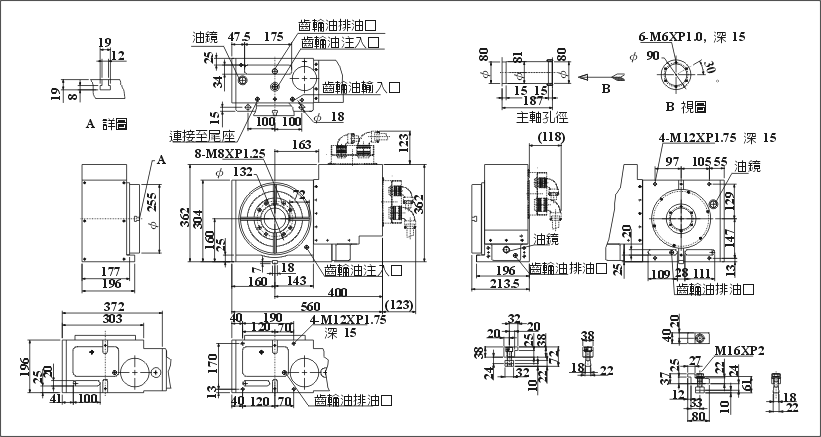

Dimension(download)- JIF File   TTD 125 TTD 255H
Dimension(download)- PDF File   TTD 125 TTD 255H


Manual Tilting Rotary Table


Highest clamping force is stronger that can be suitable heavy cutting.
The angle rotate by hand, rotary table controls by NC controller.
Can do any angle maching.



Model (Unit:mm)
TDM-170
Clamp Method
Pneumatic 5kg/cm2
Faceplate Dimension
p170
Spindle Through Hole Diameter
p45
Faceplate Center Hole Diameter
p50H7
Center High
170
Faceplate T Solt Width
12H7
Position Key
18h7
Servo Motor

Rotate Axis
Tilting Axis
FANUC
\3/\4i/\8i
Manual
MELDAS
HA40/HF053T
Min. Speed Reduction Ratio
0.001°
5'
Total Speed Reduction Ratio
1/90
Indexing Accuracy (Cumulative)(Arc. Sec.)
30"
Repeatability (Arc.Sec.)
4"
Clamp Force (kgf/m)
16
Max. Torque Capacity of Worm Gear (kfg/m)
27
Tilting Angle
0°~90°
Max. Workpiece of
Capacity (kg)
Vertical
(with tailstock)
75
(150)
Horizontal
150
Net Weight (without motor) (Kg)
90

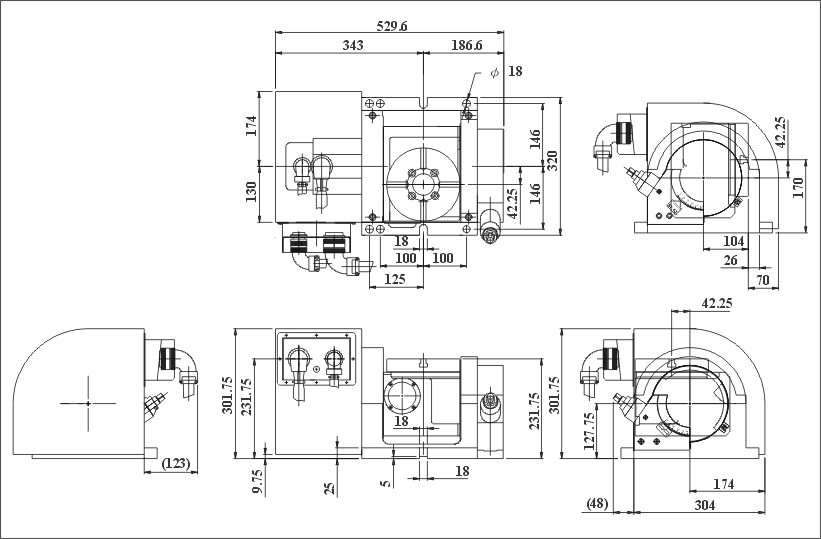

Dimension(download)- JIF File TDM-170
Dimension(download)- PDF File TDM-170
